Description
This Product has been Discontinued
Fits: 2003-2005 Ford Powerstroke 6.0L 5R110
SunCoast's Ford series rebuild kits cover all years from 1989-2015 (kit part number dependent upon year). These kits utilize the latest proven friction materials and steel technology from industry leading companies such as Alto, Exedy, and Raybestos. SunCoast works directly with these companies to design and manufacture proprietary exclusive SunCoast product lines, giving the end user uncompromised quality throughout the entire transmission. SunCoast has designed these kits in house to exact specifications for many intents, including but not limited to towing, sled pulling, racing or having a vehicle to get from point A to point B.
Part Number: IRON-0305-3R
Features
- Raybestos Friction Materials
- Includes All Gaskets & Hydraulic Upgrades
- SunCoast 5R110 limit valve
- SFI-approved flex plates
- SFI approved transmission jackets

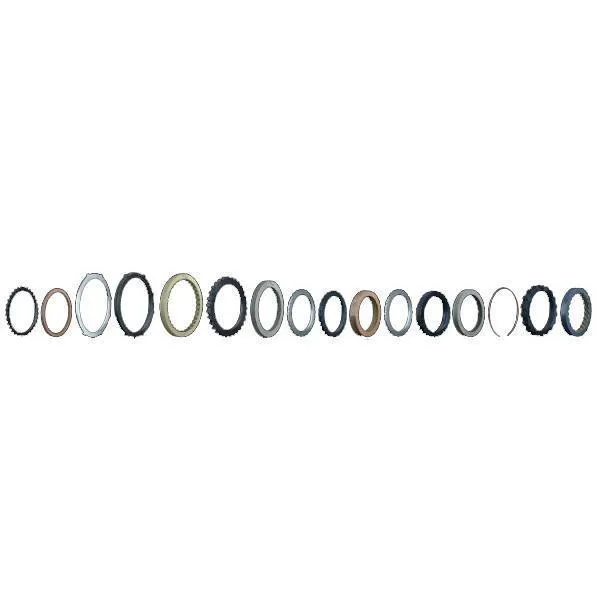

Includes:
- 5 Raybestos overdrive clutches with Kolene steels
- 2 pressure plates and piston for Overdrive section
- 5 Alto Intermediate clutches with Kolene steels and a pressure plate
- 5 Raybestos forward clutches and Kolene steels
- Pressure plate and snap ring to set proper clearance.
- Upgrade to 6 Raybestos frictions for direct
- 6 Kolene steels 2 pressure plates
- snap ring and piston. 6 low and reverse clutches
- 6 Kolene steels.
- TransGo Shift kit
- Paper and rubber gasket set
Notes
- Due to Ford's 1st design plates and the 2nd design plates we had to include both sets for the forward clutch packs.
- The 1st design is friction and the 2nd design is the Raybestos material.
